Extension Kit

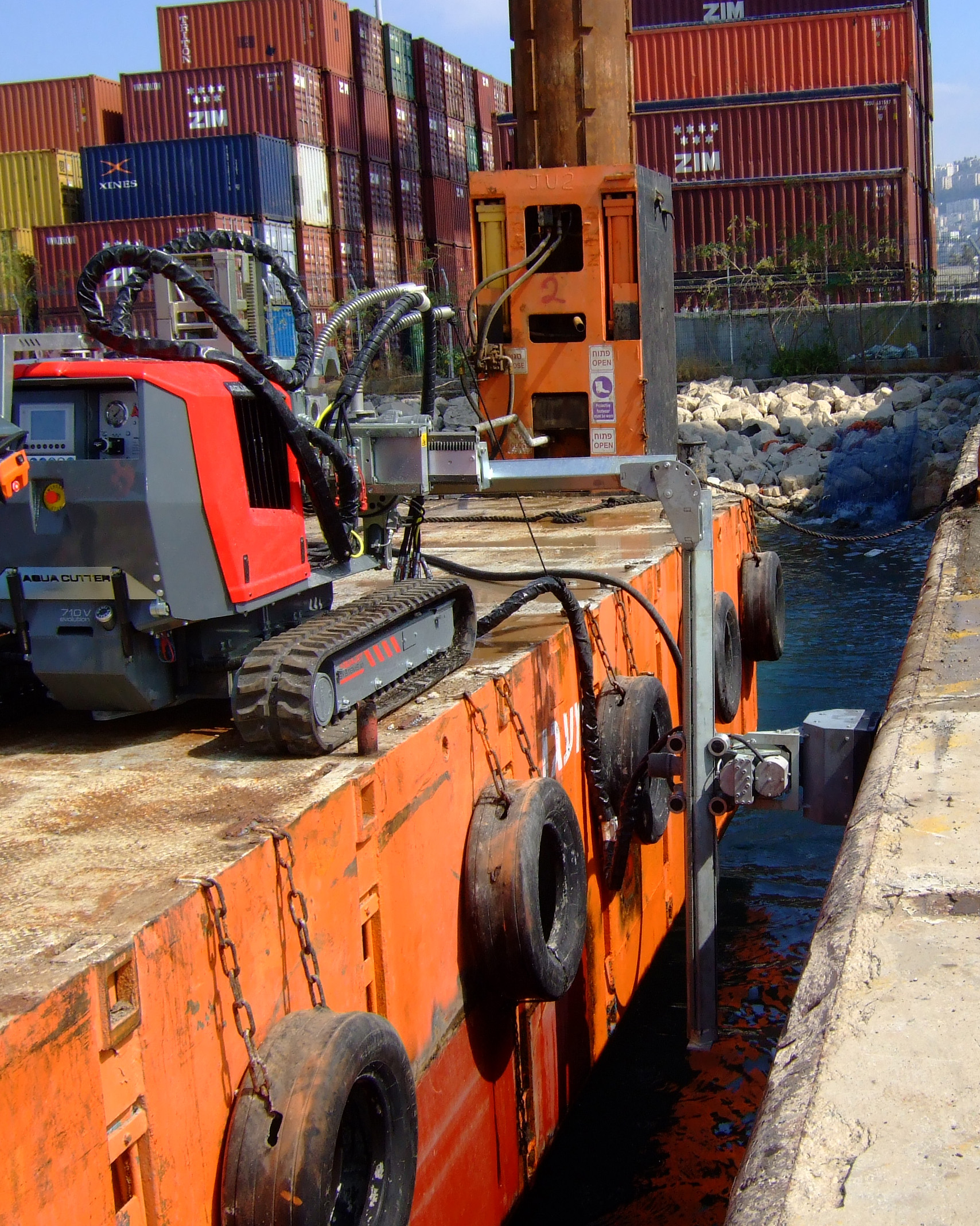

This is a great way to extend your reach in vertical and under/up operations. By mounting the extension kit, the Aqua Cutter hydrodemolition robot can work from the deck to side or under a bridge without dismounting of the bridge railing. That’s both smart and useful!

Extend your reach

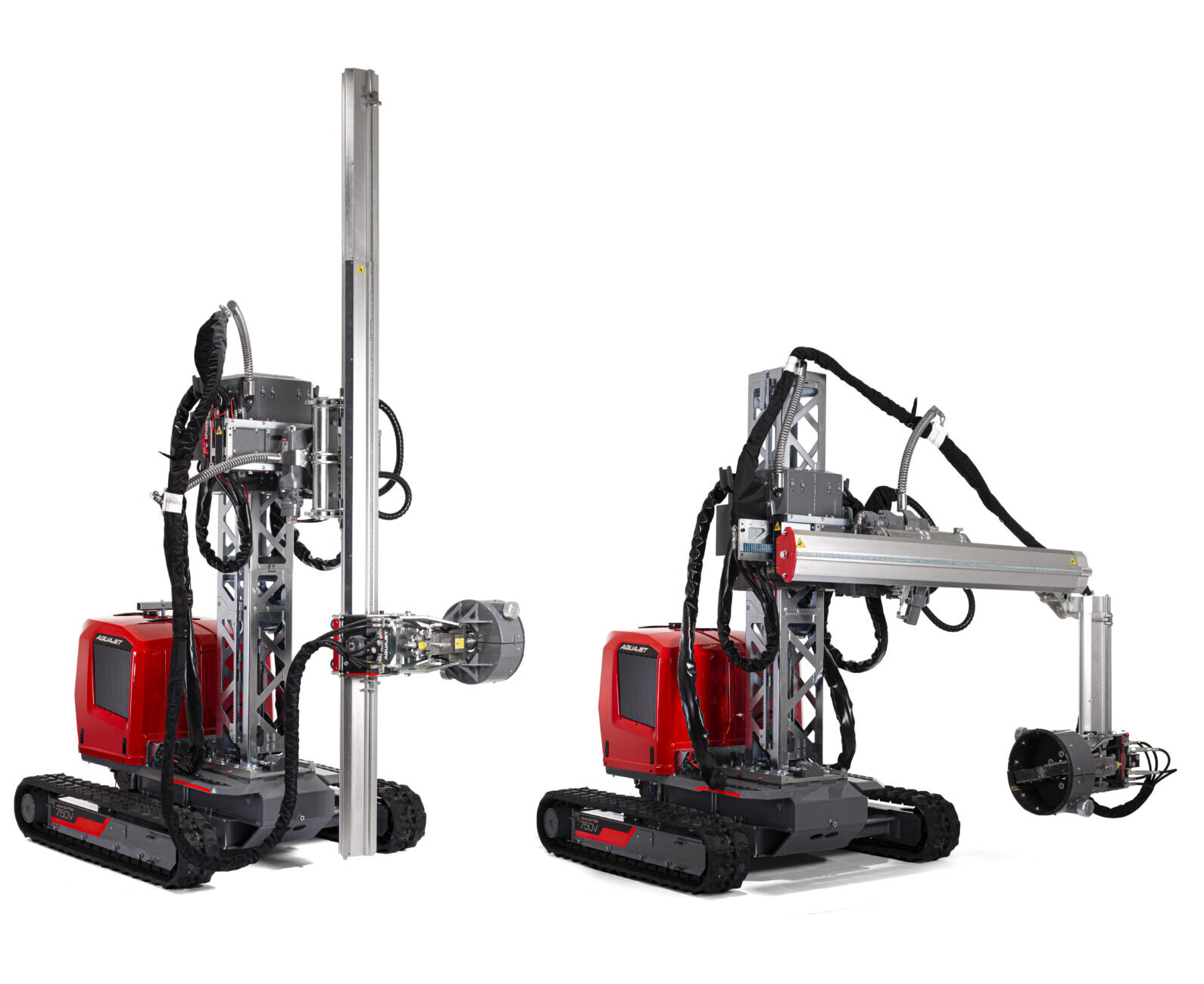

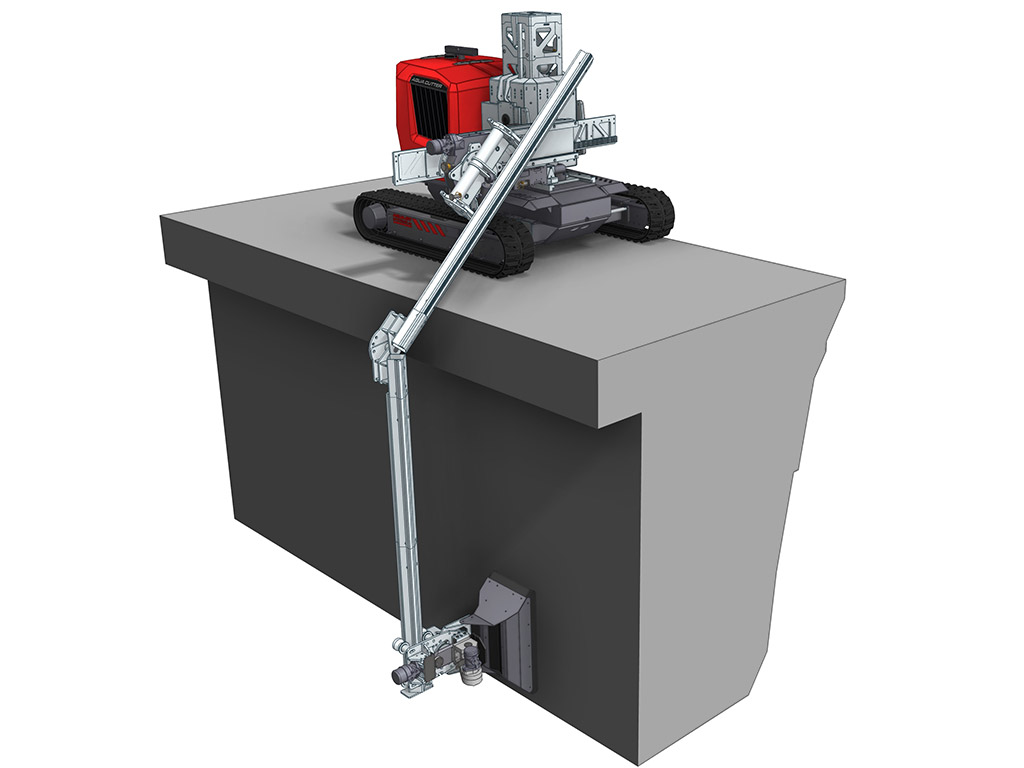

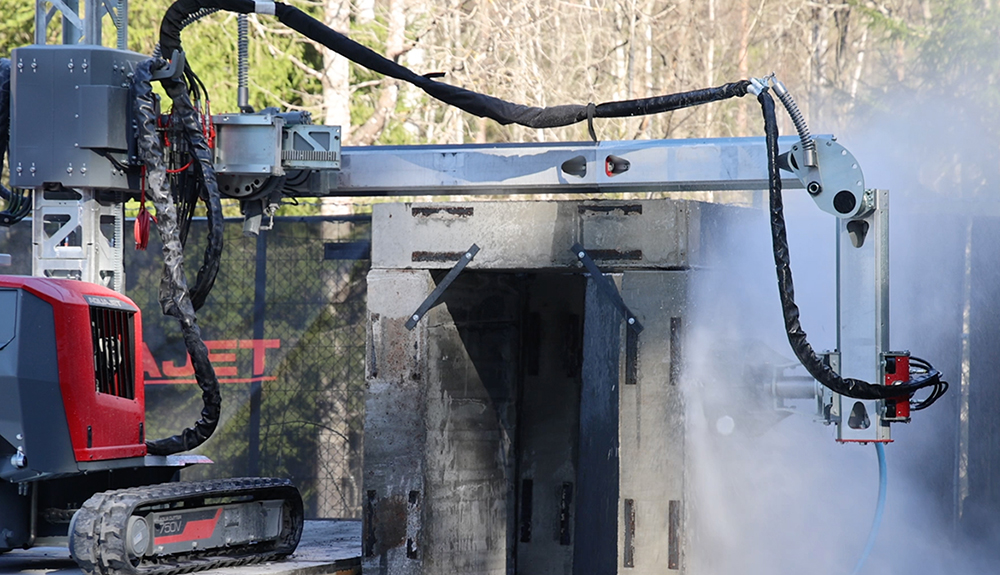

By mounting the Extension kit on the Aqua Cutter robot, the robot can be standing on a deck working at both sides or under a bridge without any need to remove the bridge railing. The Extension kit is very easy to attach to the robot and there’s no need for special tools or any changes in the construction.

Features

  • Extension kit

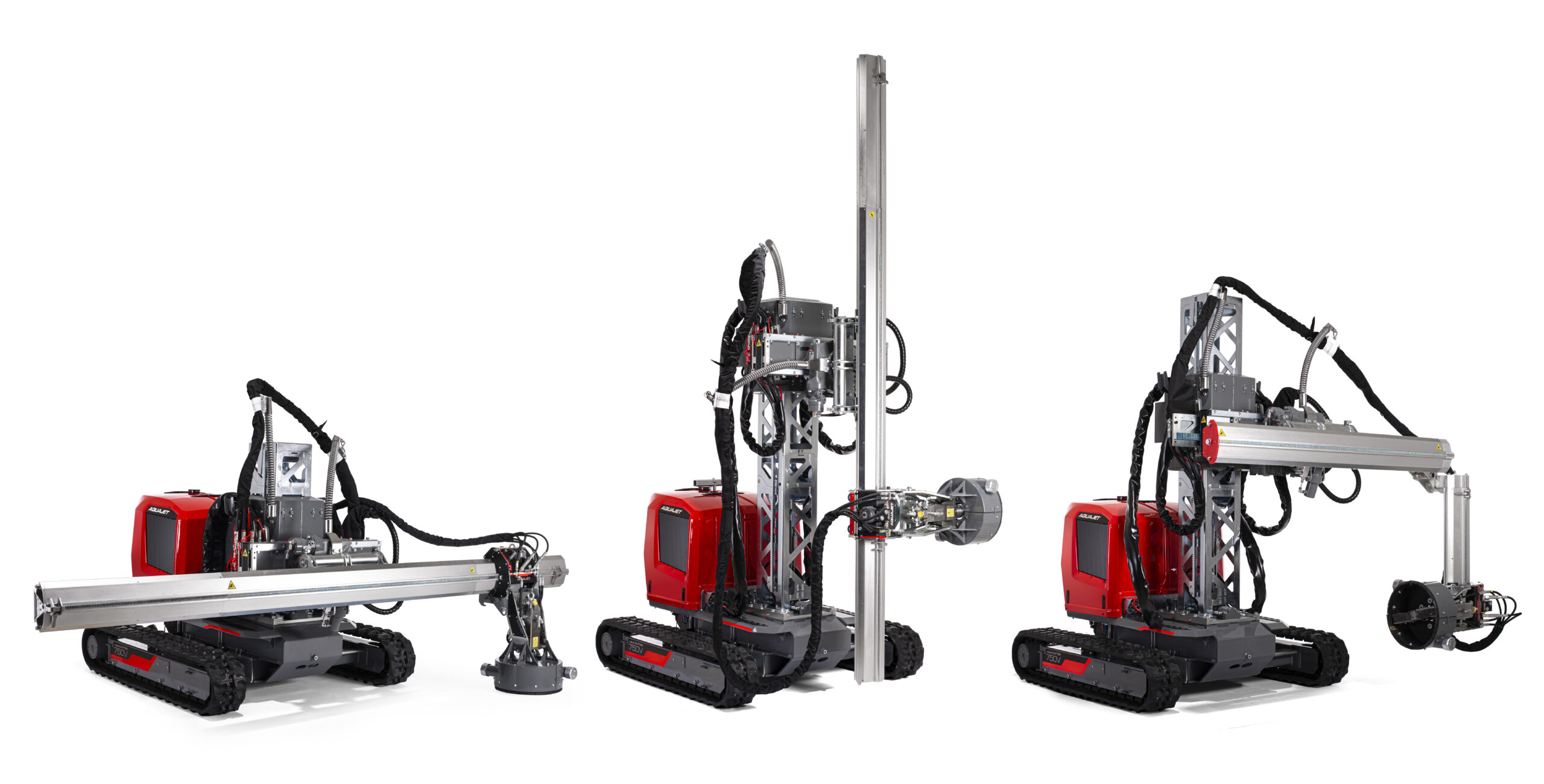

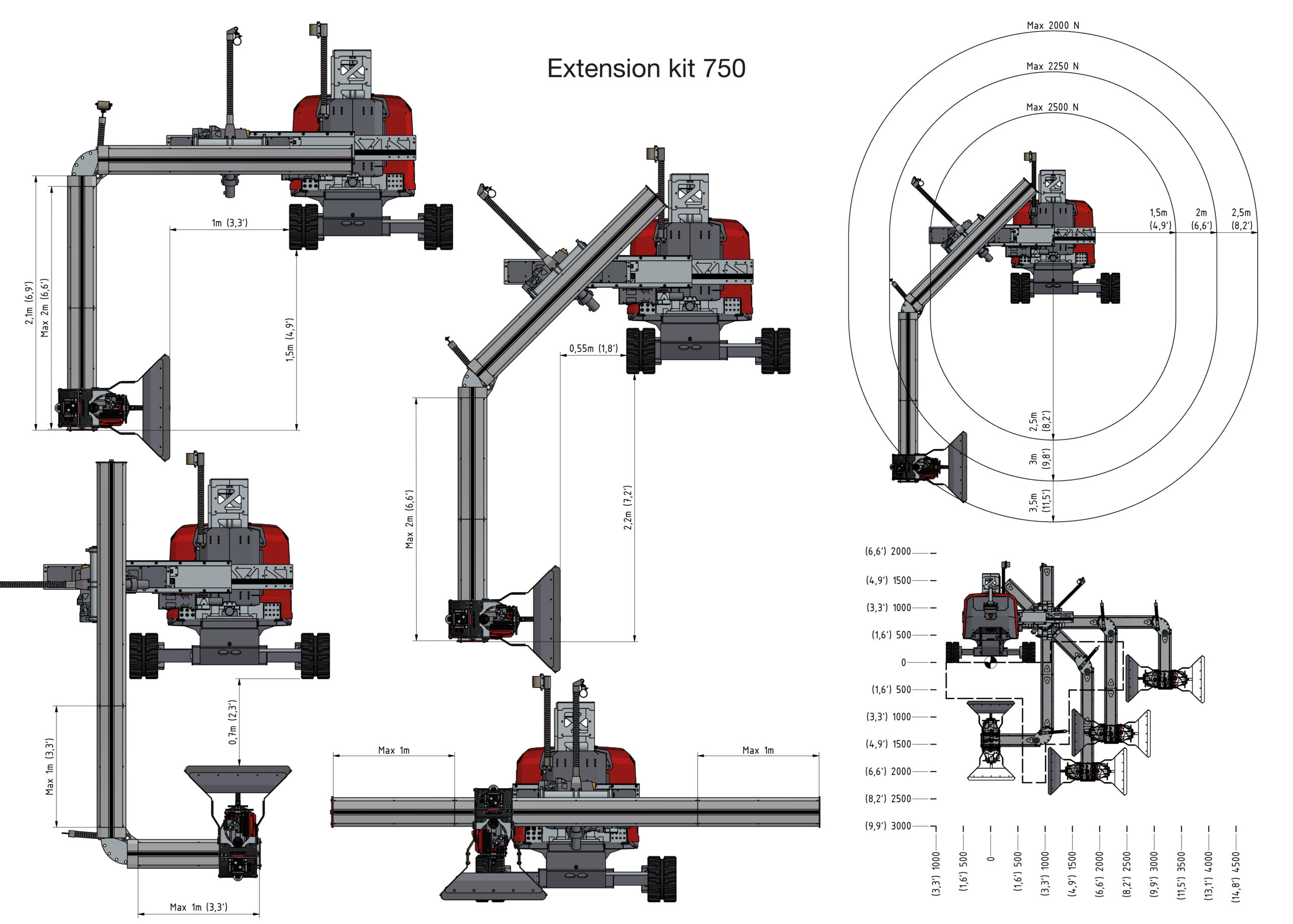

    Our standard Extension kits, for the Aqua Cutter 710 and Aqua Spine, come in two versions:
    Extension kit 2 ×1 m (2 x 3,3 ft) and Extension kit 2 ×1 m (2 x 3,3 ft) with elbow. The kits consist of extension beams, articulated joints, splash covers, and extensions for hydraulics and electronics.

  • The Extension kit LT

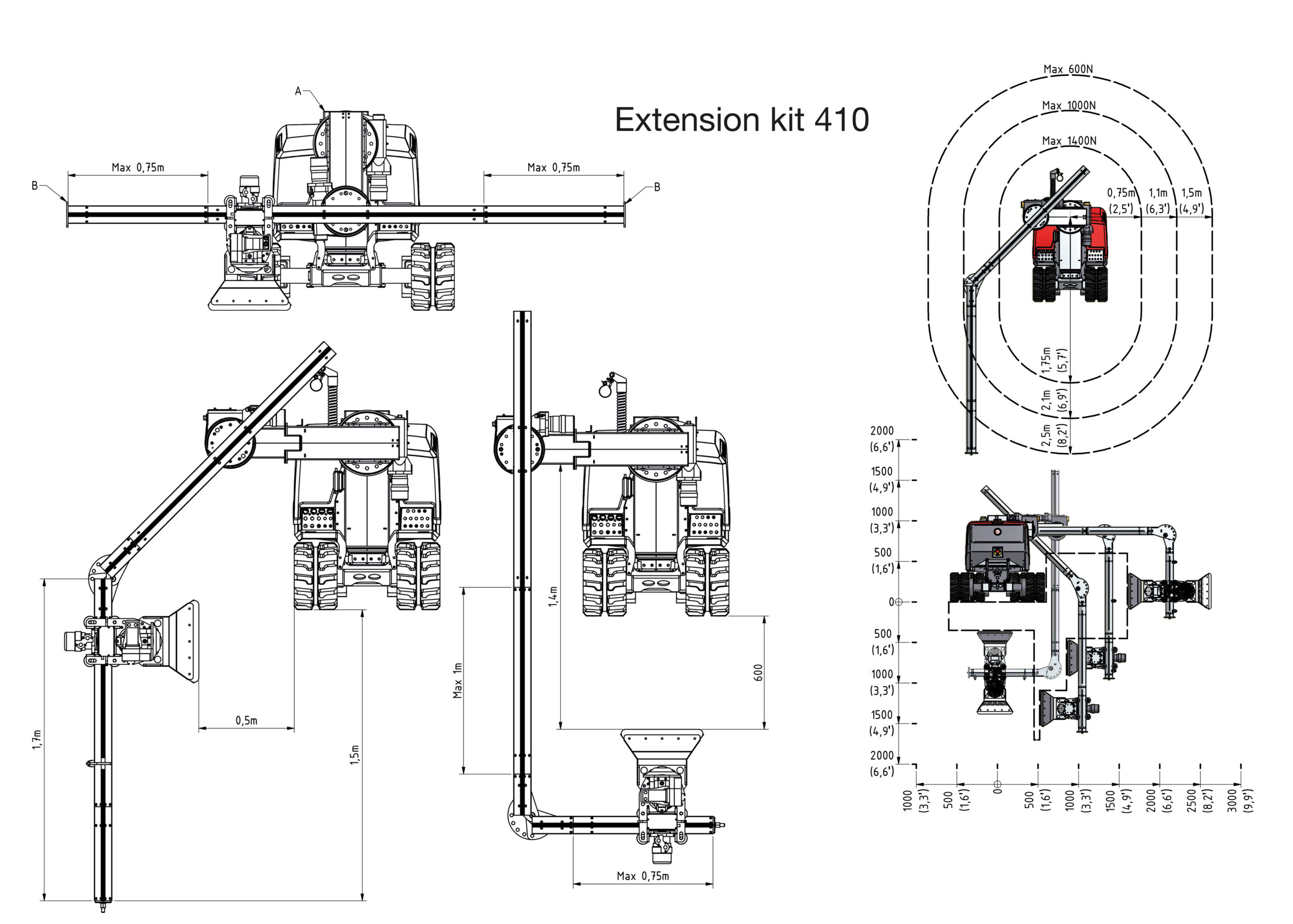

    For the smaller 410 sibling we have developed the Extension Kit LT, to extend reach in vertical and under/up operations. The kit consists of an extension beam, an articulated joint and a splash cover.

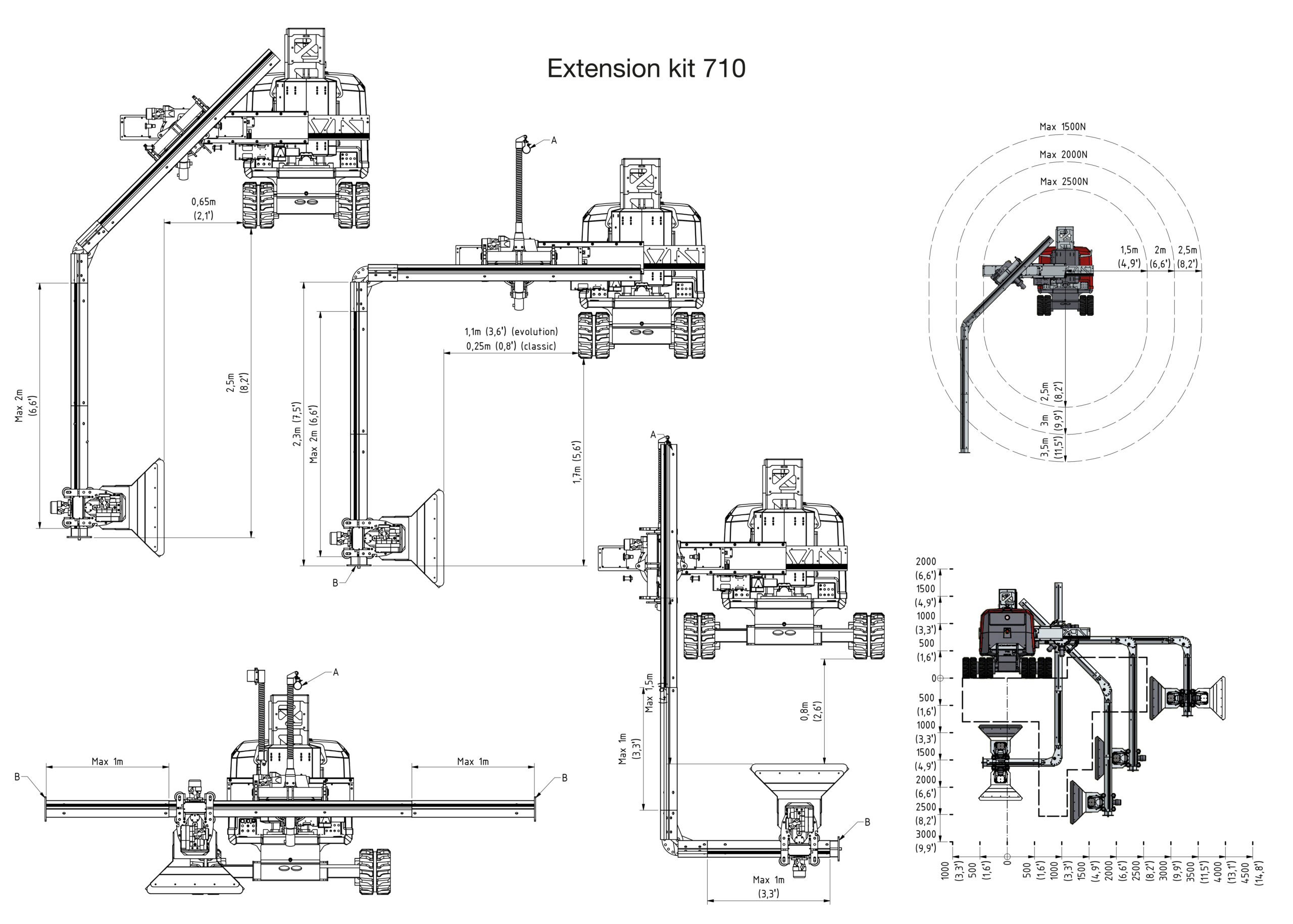

SpecificationsExtension kit Extension kit LT
Extensions250 / 500 / 750 / 1000 / 1500 mm (0,82 / 1,64 / 2,46 / 3,28 / 4,92 ft) 250 / 500 / 750 / 1000 / 1500 mm (0,82 / 1,64 / 2,46 / 3,28 / 4,92 ft)
Max. extension 2000 mm (6,56 ft)1500 mm (4,92 ft)
Bend angle 0° / 22,5° / 45° / 67,5° / 90° / 112,5°0°, 22,5°, 45°, 67,5°, 90°, 112,5°
