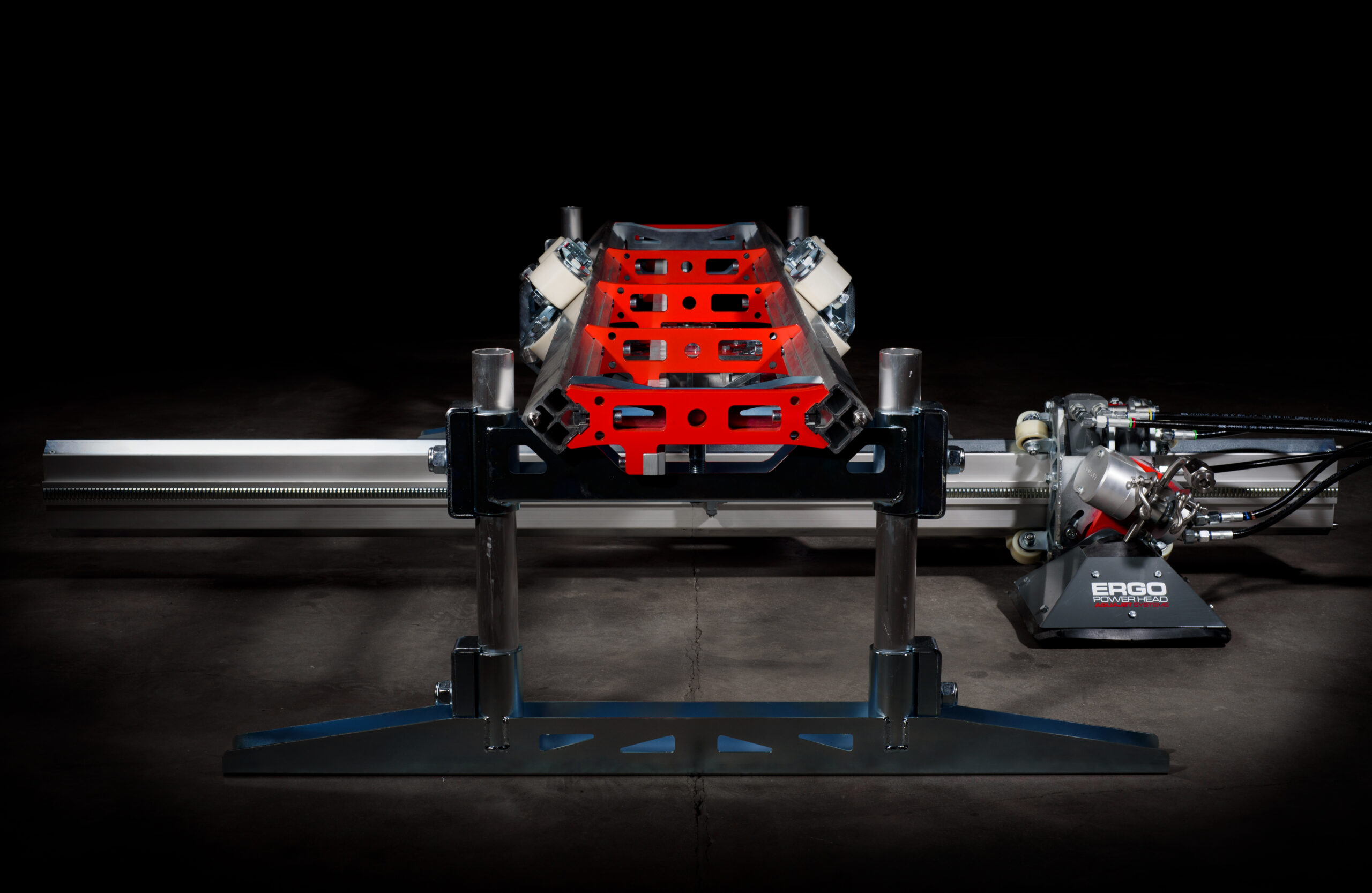

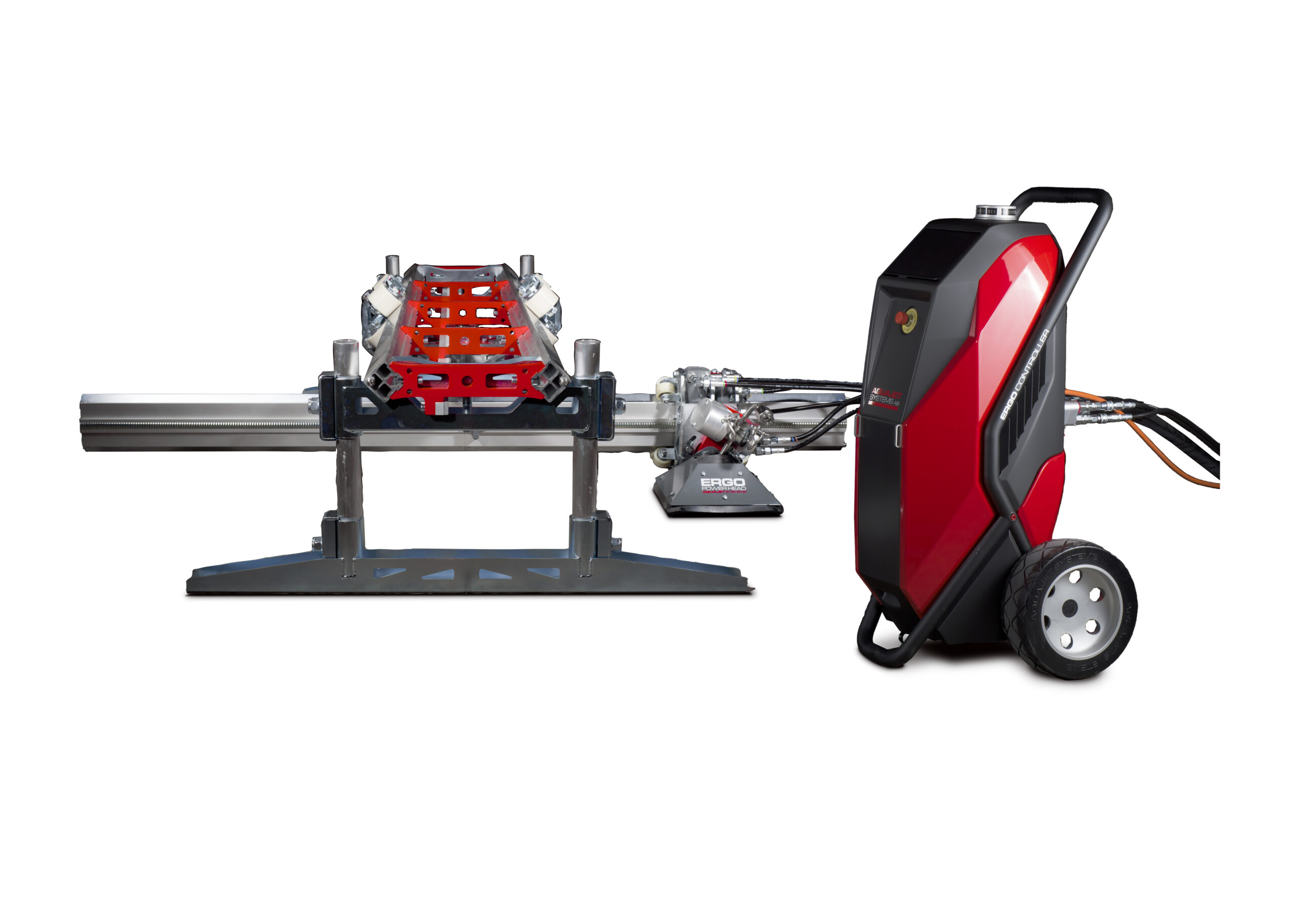

ERGO SPINE GO
Compact hydrodemolition system

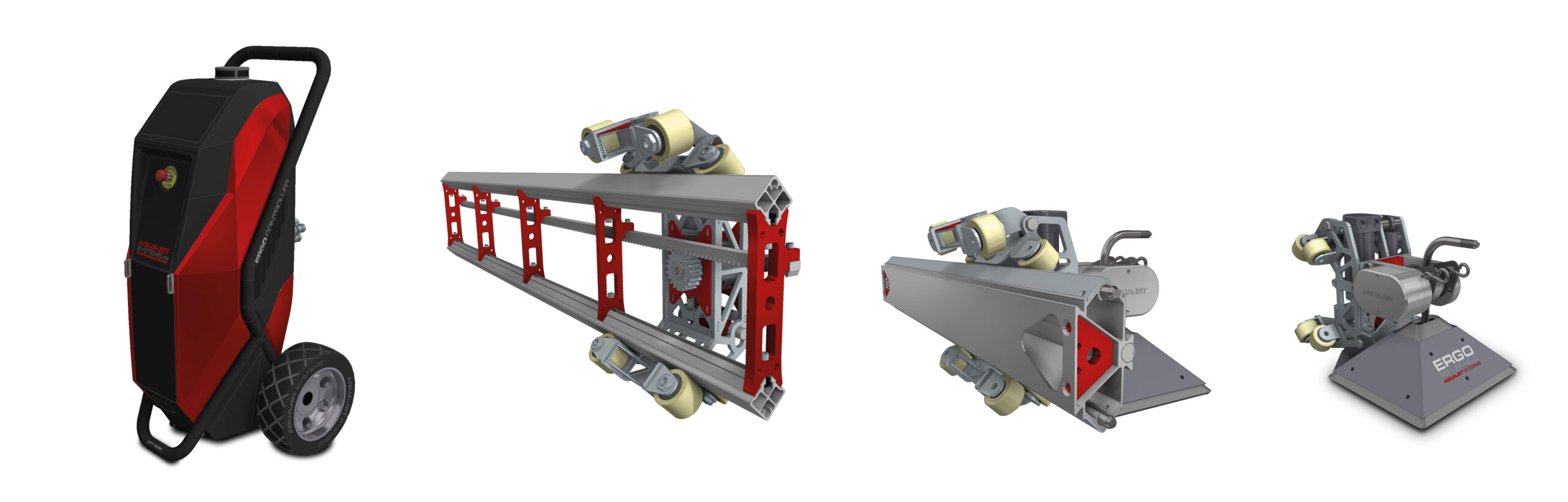

The Ergo Spine Go is part of the Ergo family, featuring a
lightweight yet high-strength Ergo Spine rail that supports
a roller beam and Power Head, all controlled by the Ergo
Controller. Its standard setup efficiently tackles concrete
walls, floors, and ceilings, while the side configuration is
ideal for accessing tight or confined spaces, making it
ideal for the most challenging work environments.
Compact Ergo rail kit
for surface prep and
industrial cleaning.
ELECTRIC
3000 BAR
(43 500 psi)
1000 N
(225 lbf)
60 DB
ERGO
Flexible setup for complex and confined applications
The Ergo Spine Go is a lightweight and flexible rail-guided hydrodemolition system designed for concrete removal and surface preparation in confined, narrow, or hard-to-access environments. Built around the modular Ergo Spine rail system and Ergo Controller, it enables stable and precise operation on walls, ceilings, floors, and other challenging structures.

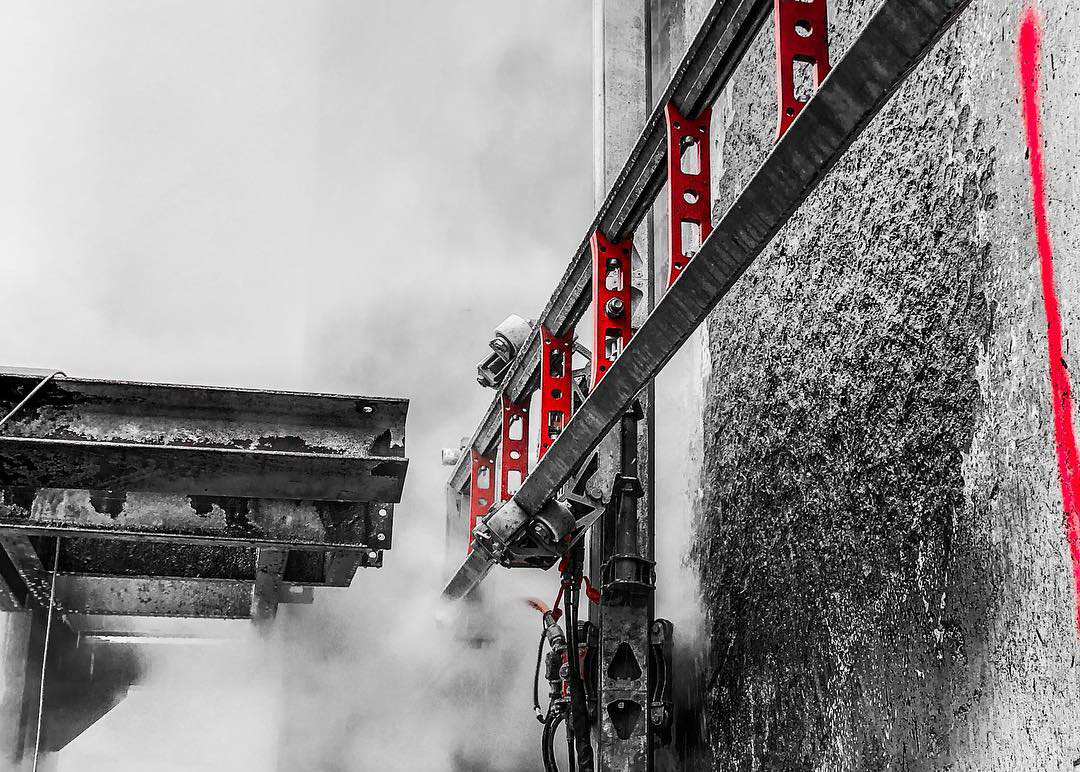

The lightweight rail sections and roller beam system allow flexible configurations for both linear and side-mounted applications, making the Ergo Spine Go well suited for tunnels, shafts, industrial structures, and other areas where accessibility is limited.
Combined with compatible Ergo Power Heads and Rotolance systems, the Ergo Spine Go delivers controlled and consistent hydrodemolition performance while maintaining accurate lance positioning throughout the operation.
Its modular design allows fast setup, easy transportation, and adaptable configurations directly on-site — providing an efficient solution for hydrodemolition applications where larger robotic systems cannot operate effectively.
Features
-
Ergo control system
The Ergo Control System is the intelligent core of the Ergo system. With an operator-friendly design, it coordinates hydraulics, movement,…
The Ergo Control System is the intelligent core of the Ergo system. With an operator-friendly design, it coordinates hydraulics, movement, and system settings to deliver precise, flexible, and safer hydrodemolition. The settings can be controlled either from the display on the Ergo Controller or from the display on the radio remote control.
-
Quick connect
The hydraulic hoses are connected to the Ergo Controller with a multi connector. This is also secured with one single…
Learn moreThe hydraulic hoses are connected to the Ergo Controller with a multi connector. This is also secured with one single bolt. After the high pressure hose has been connected, the operation can be started.
-

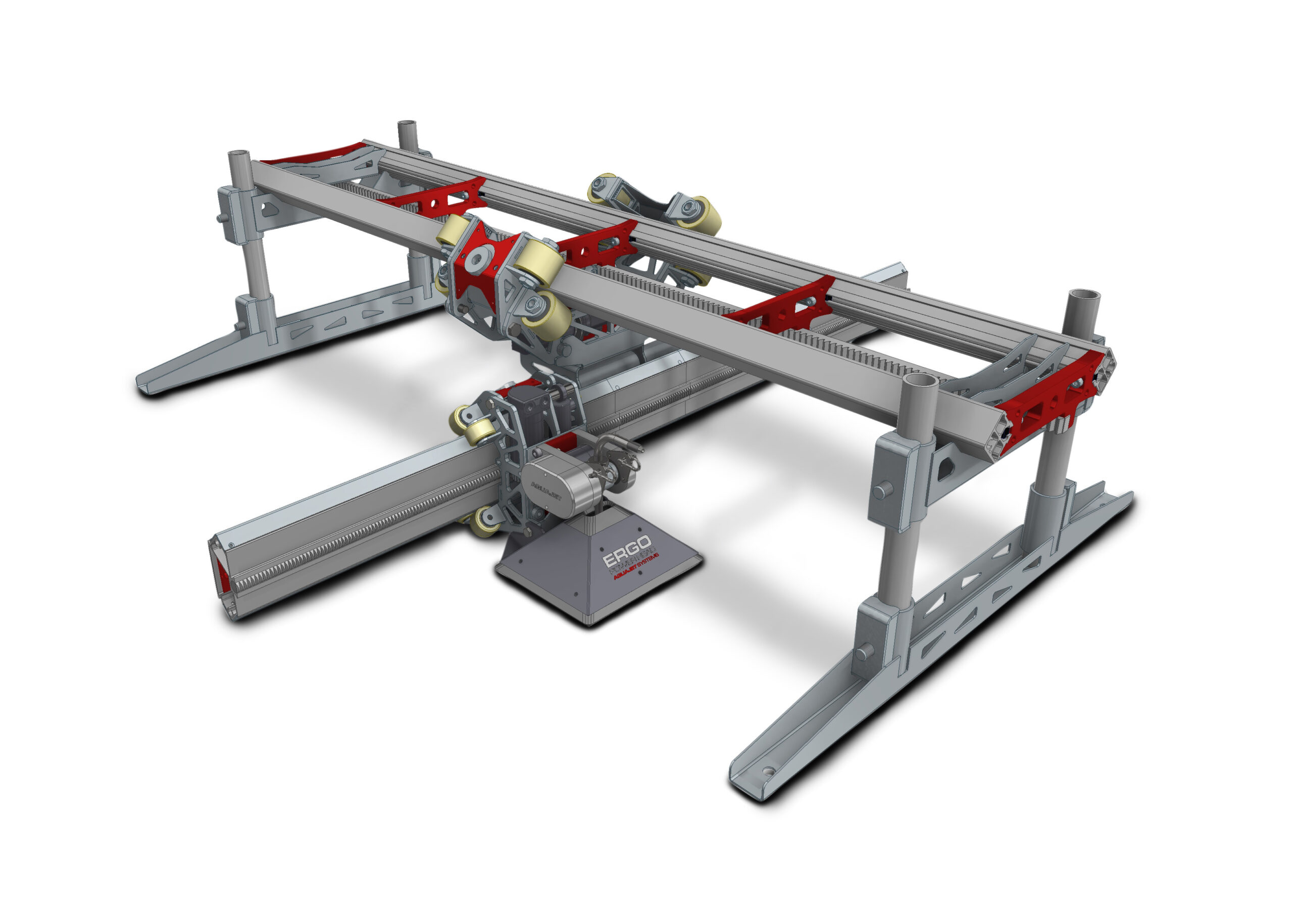

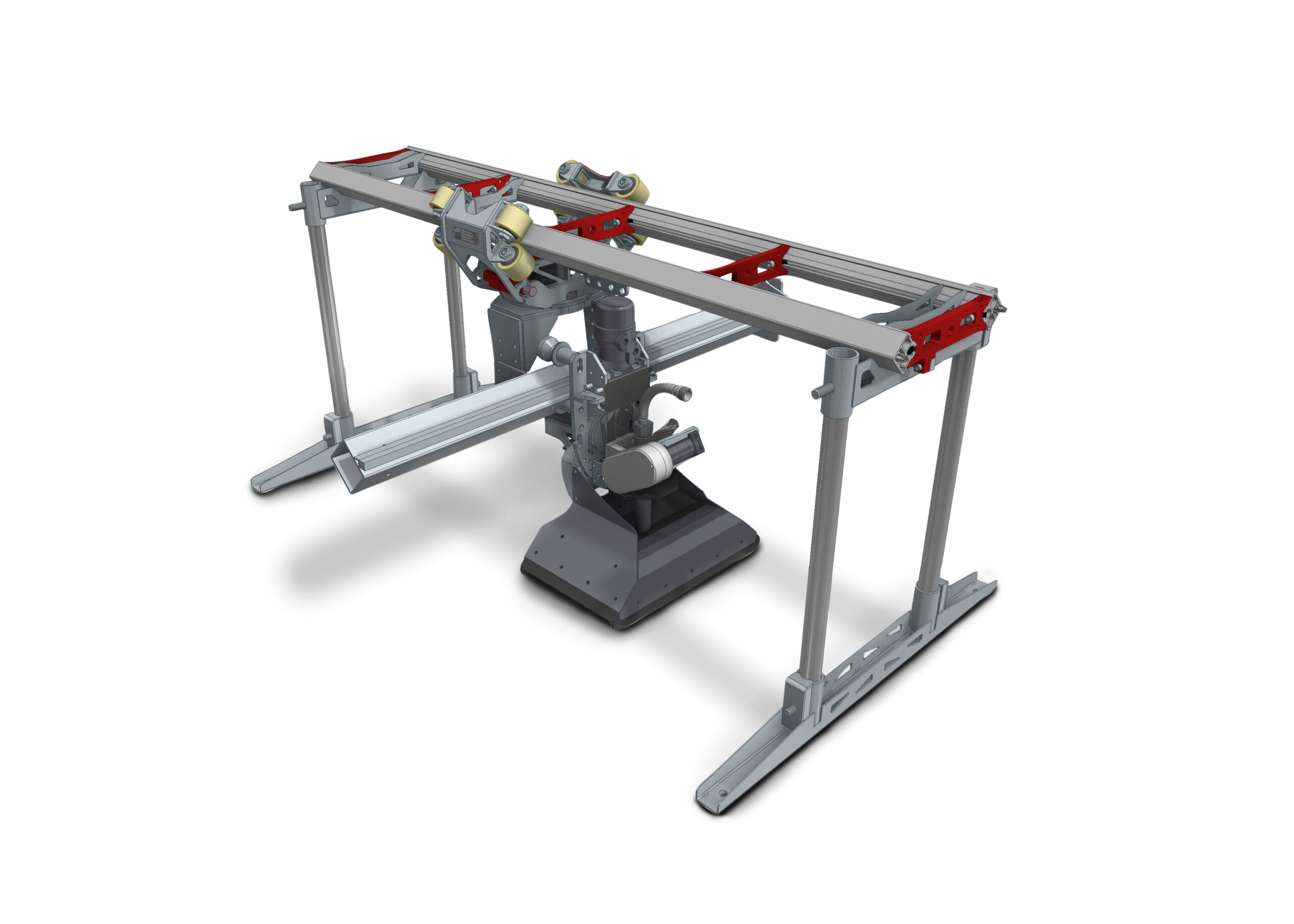

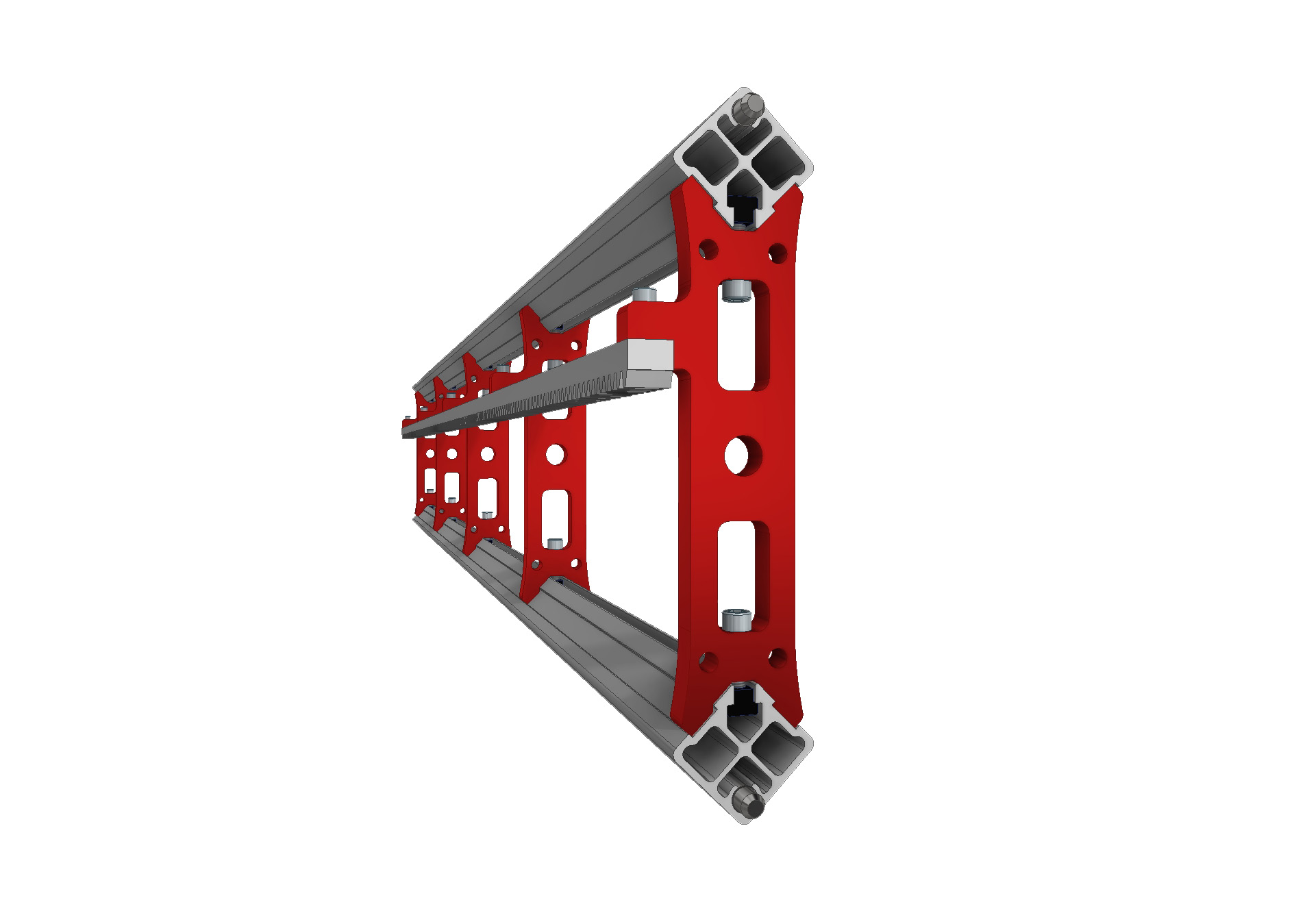

Spine
The lightweight, high-strength skeletal design and force-distributing wheel setup allow the Ergo Spine to handle high reaction forces with stability…
The lightweight, high-strength skeletal design and force-distributing wheel setup allow the Ergo Spine to handle high reaction forces with stability and control. Standard and side configurations make it suitable for walls, floors, ceilings, and narrow spaces alike.
-

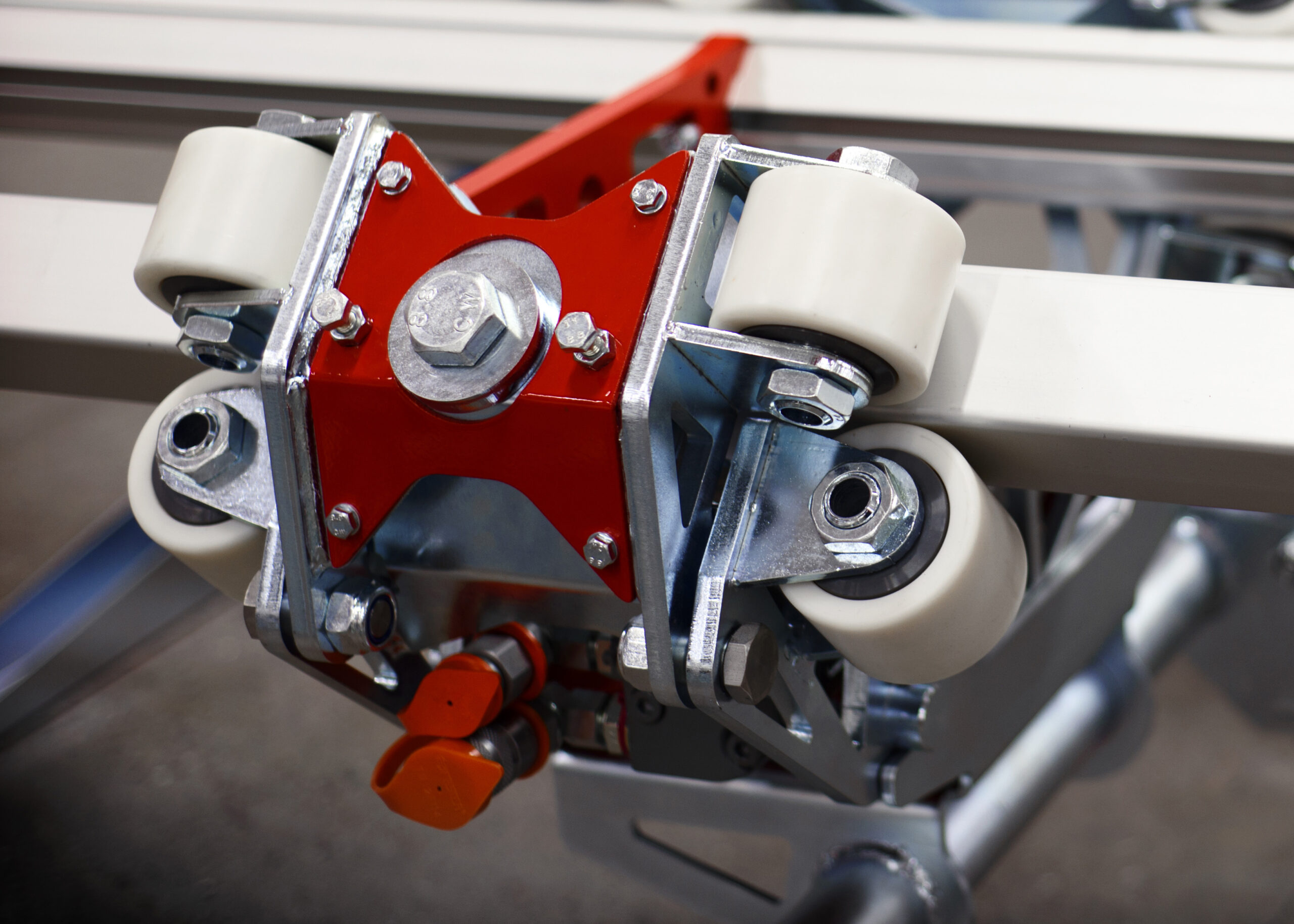

Spine Roller
The Spine Roller ensures smooth, stable, and controlled movement along the Ergo Spine rail. It guides the roller beam with…
The Spine Roller ensures smooth, stable, and controlled movement along the Ergo Spine rail. It guides the roller beam with precision, distributing loads evenly and maintaining consistent contact with the rail during operation.
Connected to the Ergo Spine using Aquajet’s single-bolt solution, the Spine Roller is quick to install and easy to service.
-
Quick connection
Quick connection with single bolt for different brackets and tools.
Quick connection with single bolt for different brackets and tools.
-

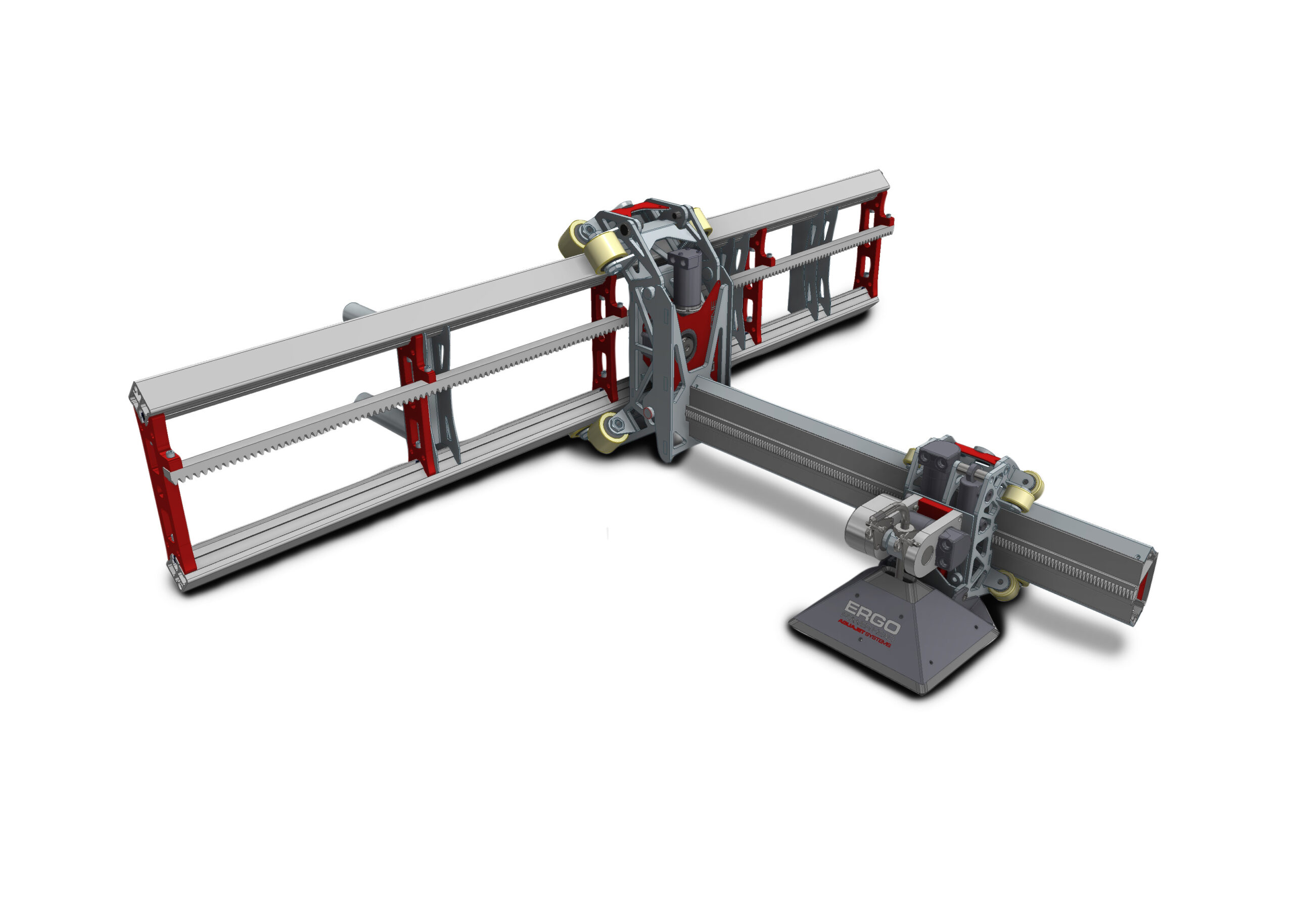

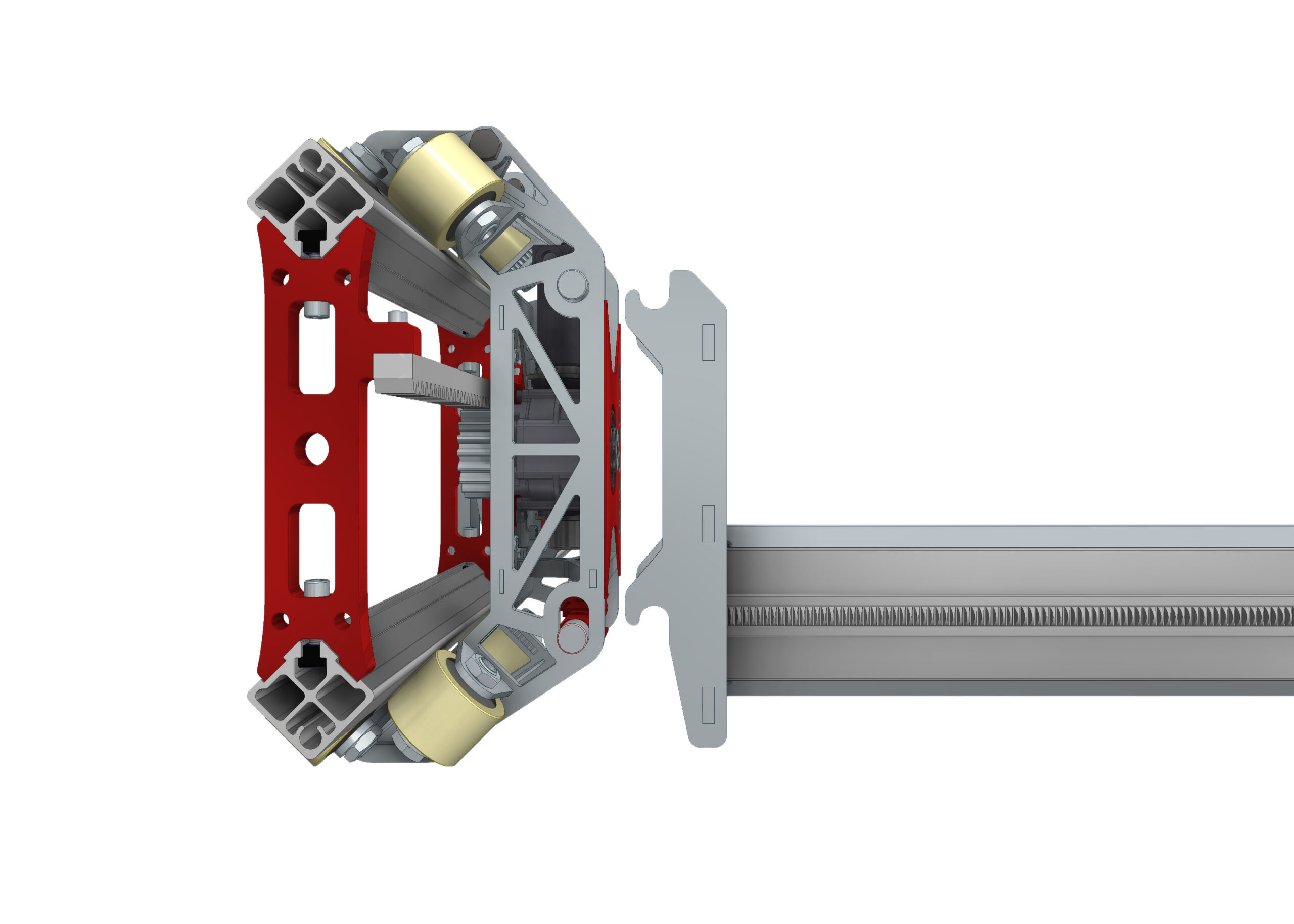

Roller beam and Power head
The roller beam snaps into place on the Spine Roller and is secured with a single bolt on each side….
The roller beam snaps into place on the Spine Roller and is secured with a single bolt on each side. The Ergo Power Head is then snapped onto the roller beam and locked in position using Aquajet’s single-bolt solution.
This snap-in design allows for fast, safe assembly and straightforward adjustments on site, keeping setup time to a minimum.
-
Service and maintenance
Designed for easy and safe service and maintenance, the Ergo system simplifies everyday work for the operator. All components connect…
Designed for easy and safe service and maintenance, the Ergo system simplifies everyday work for the operator. All components connect using Aquajet’s unique one-size, single-bolt solution, meaning one tool is all that’s required for assembly and disassembly.
For service or maintenance, the back cover of the Ergo Controller can be easily removed, providing quick and straightforward access to all service points.
-
More technology and innovations
Learn more about our technology and innovations.
Learn moreLearn more about our technology and innovations.
Compatible attachments
Setups and solutions
Explore hydrodemolition setup solutions designed for different applications, environments, and challenges—adapted to deliver the right performance every time.

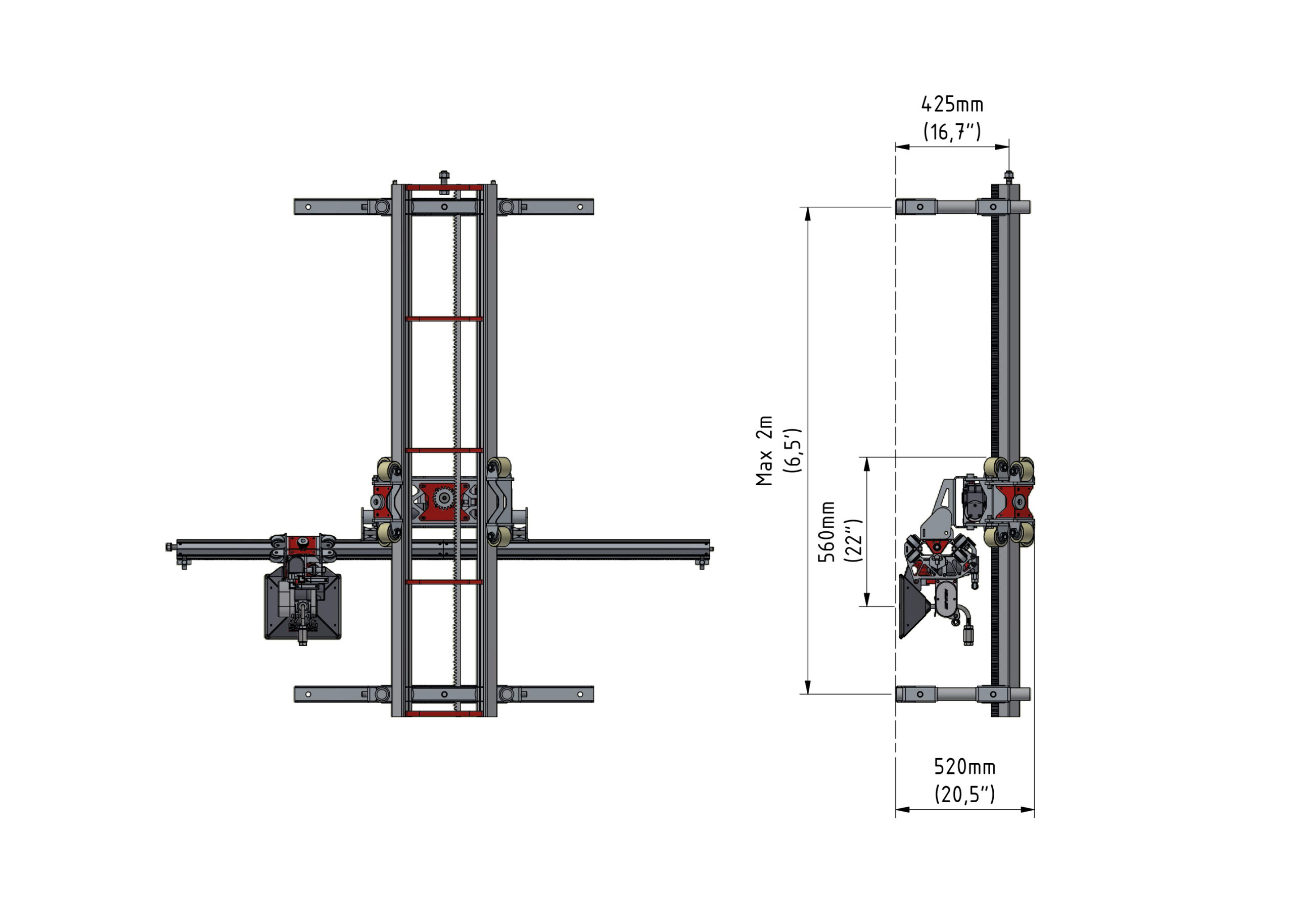

Specifications
| Size/Range | |
|---|---|
| Controller | |
| Length | 530 mm (20,9 in) |
| Width | 430 mm (16,9 in) |
| Width over wheels | 620 mm (24,4 in) |
| Height | 1110 mm (43,7 in) |
| Wheels | 320×100 mm (12,6×3,9 in) |
| Spine | |
| Working width, linear beam | 0-2,0 m (0-6,6 ft) |
| Min. width | 530 mm (20,9 in) |
| Min. clearance height | 508 mm (20,0 in) |
| Max. length between supports | 2.0 m (6,6 ft) |
| Roller beam lengths | 0,25/0,5/1,0 m (0,8/1,6/3,3 ft) |
| Lance angle | ±45° |
| Weight | |
|---|---|
| Weight Controller (dry/with oil) | 98 kg (216 lb) /124 kg (273 lb) |
| Weight Ergo Power head | 23 kg (51 lb) |
| Weight Ergo Spine roller | 28 kg (62 lb) |
| Weight Roller beam (1,0 m) | 9,5 kg (21 lb) |
| Weight Ergo Spine rail (1,0 m) | 11 kg (24 lb) |
| Operation | |
|---|---|
| Max reaction force | 1000 N (225 lbf) |
| Roller speed AUTO | 1-15 m/min (3,3-49 ft/min) |
| Indexing speed AUTO | 0,5-5 m/min (1,6-16 ft/min) |
| Noise level | 60 dB |
| Operational hydraulic pressure | 20-160 bar (290-2320 psi) |
| Max hydraulic flow | 21,4 l/min (5,6 gpm) @50Hz |
| Hydraulic oil tank volume | 25 l (6,6 gal) |
| Motor power | Electric motor, 3 phase, Direct start, 4,2 kW Multiple voltage and frequency options available. |
| Control system | |
|---|---|
| Sensors | ISC/Sensorless |
| Control System | Ergo |
| Type (control system) | Radio control, Remote control |
| Range radio control (Hard-wire) | Up to 50 m (164 ft) |
| Aquajet Online | Online tracking |
| Nozzles | Different sizes available |
